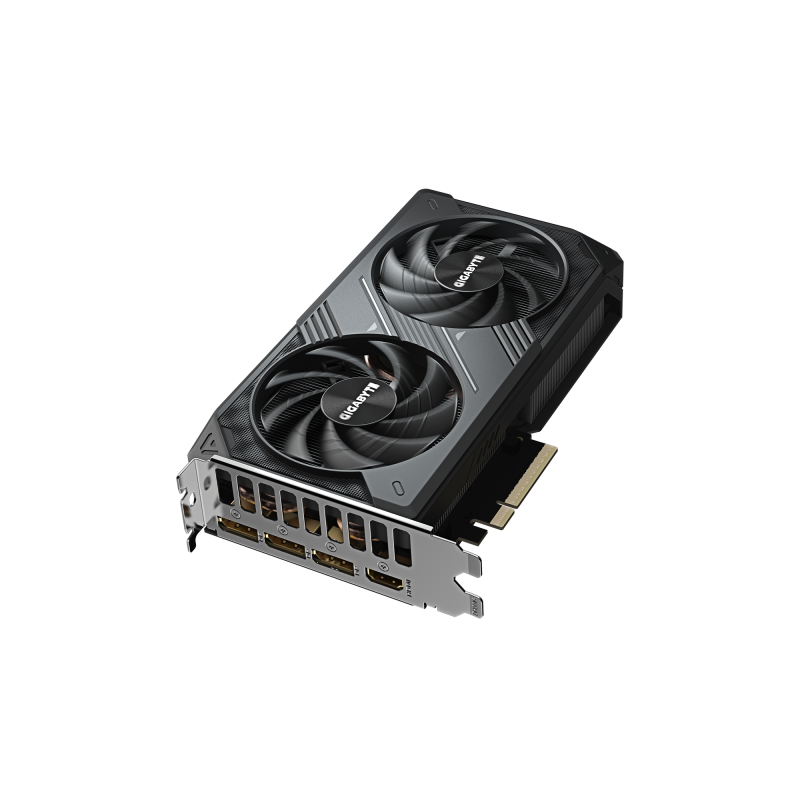

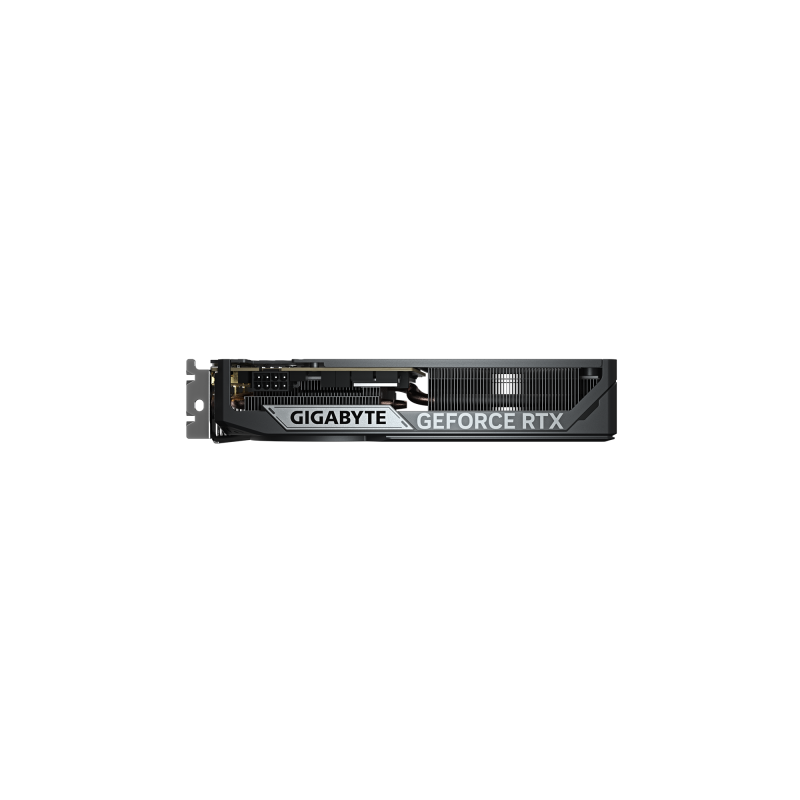

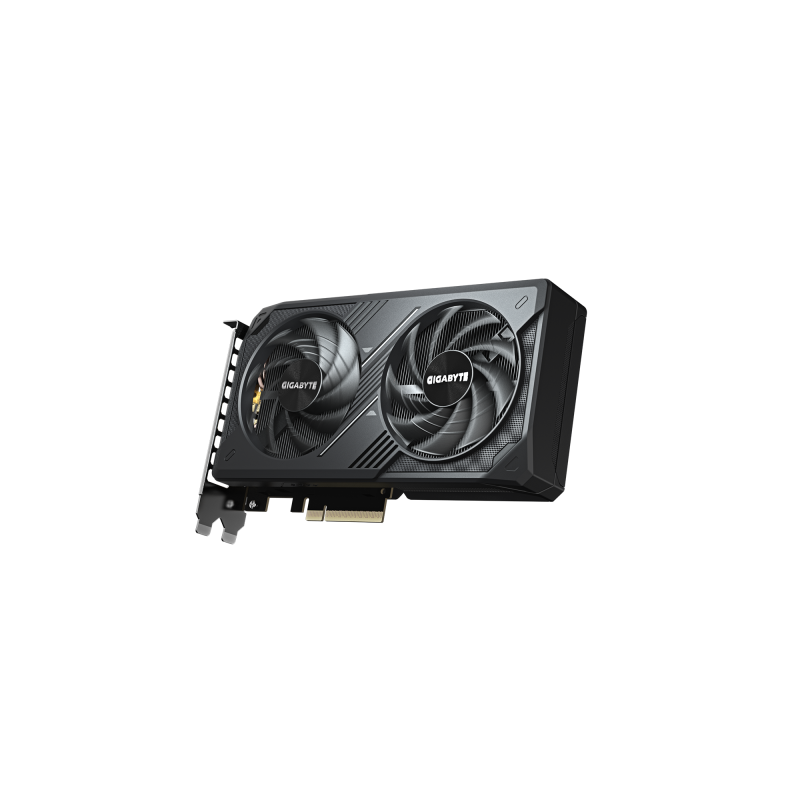

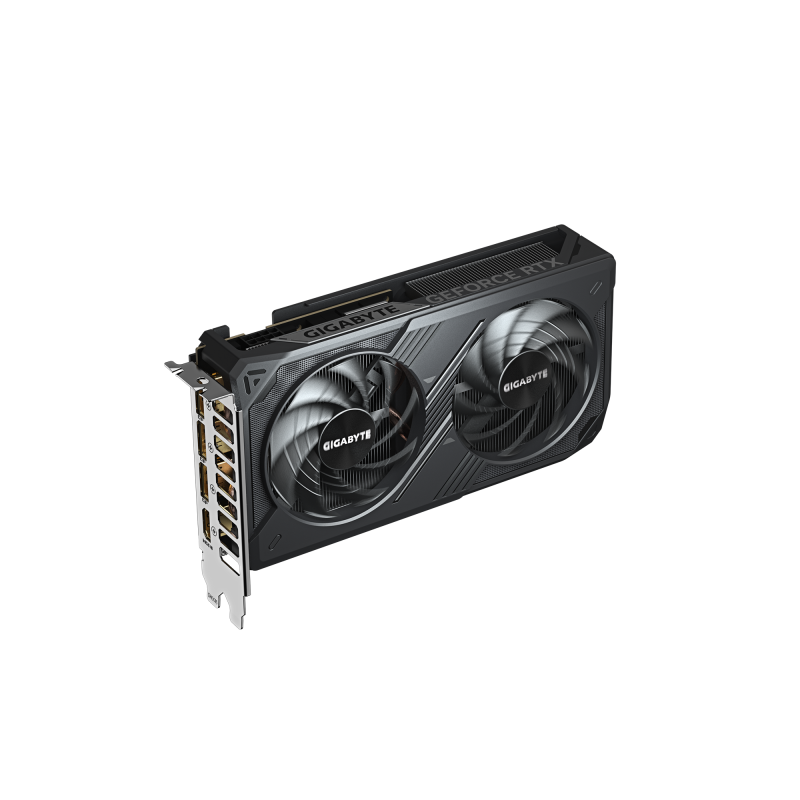

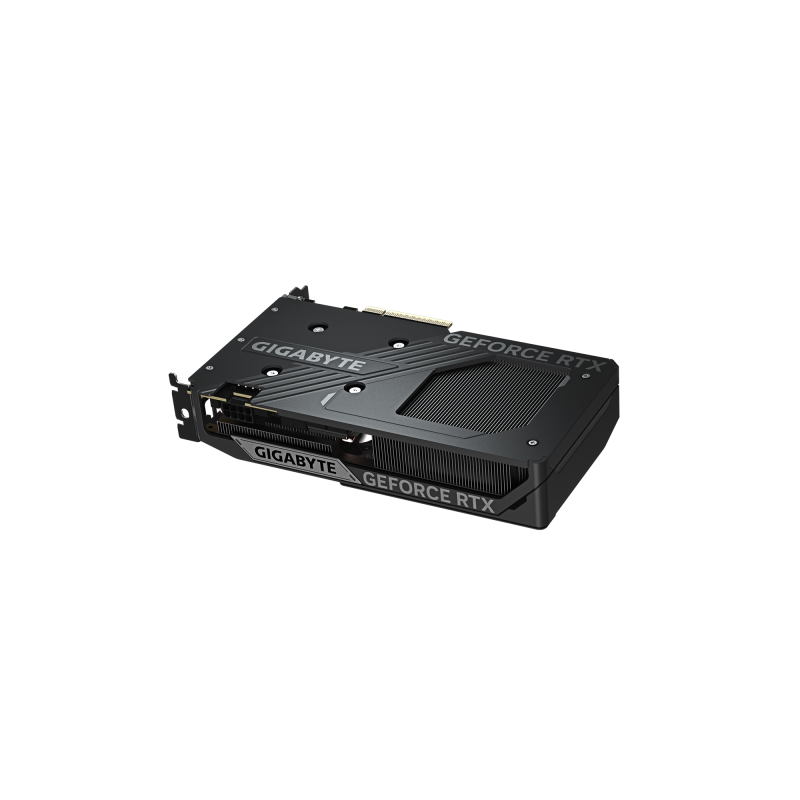

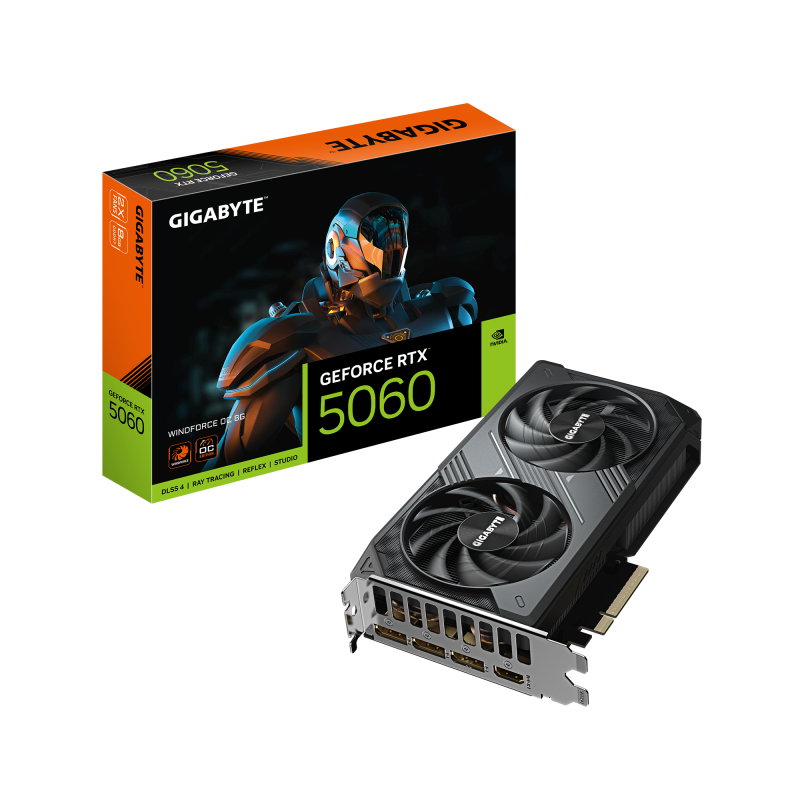

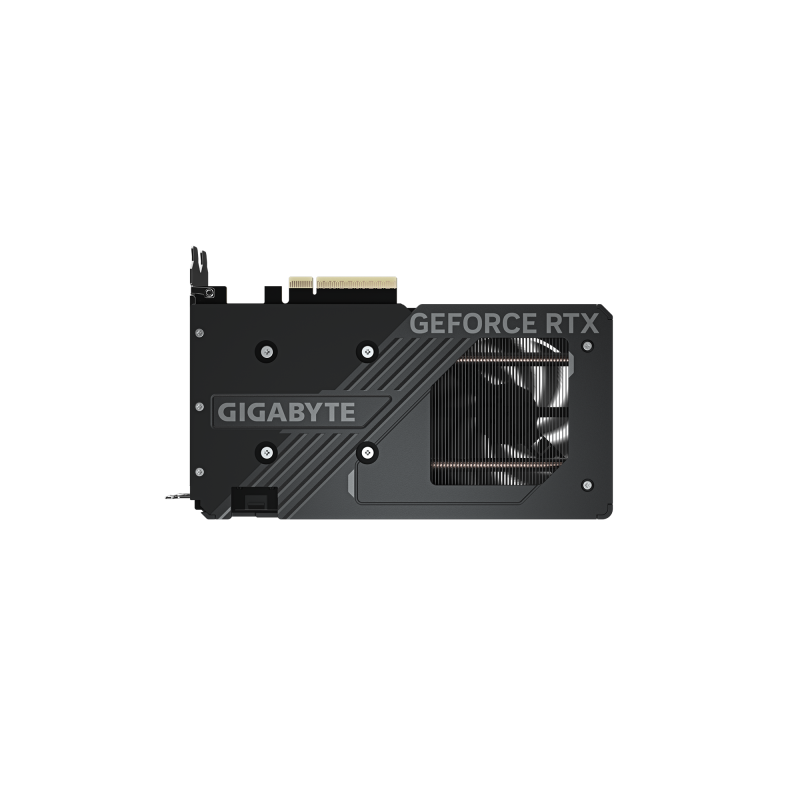

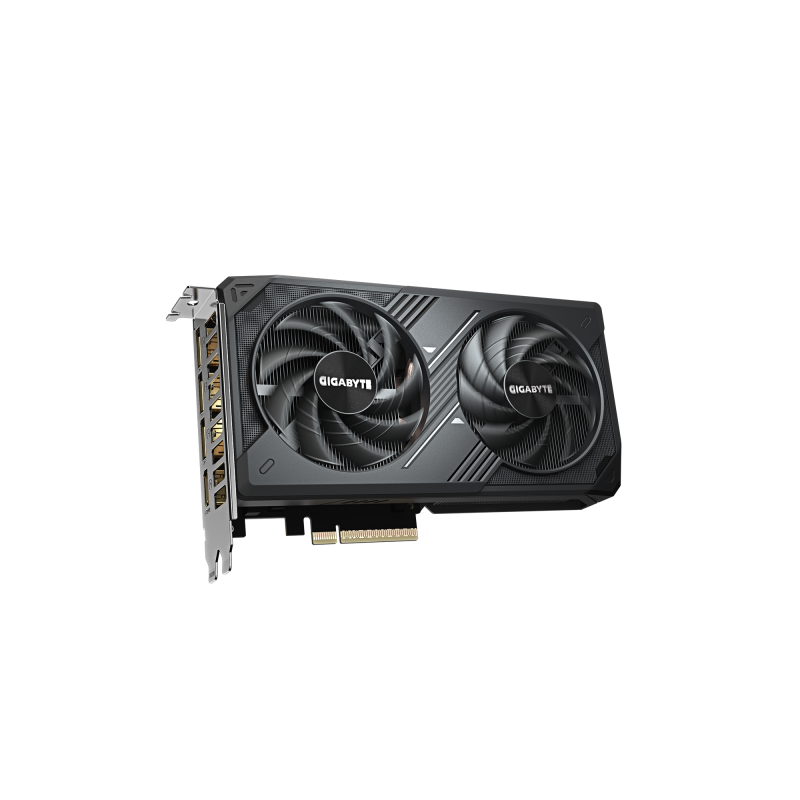

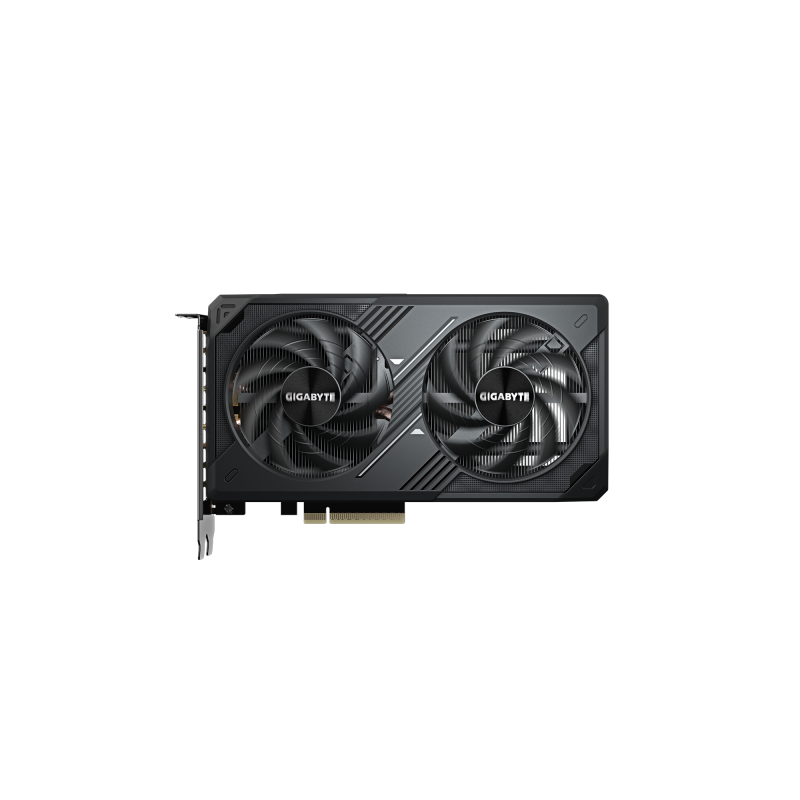

Gigabyte RTX 5060 WINDFORCE OC 8G

⚙️ Core Specs

• GPU: NVIDIA Blackwell architecture with DLSS 4

• Core Clock: 2512 MHz (Reference: 2497 MHz)

• CUDA® Cores: 3840

🧠 Memory

• Capacity: 8 GB GDDR7

• Memory Interface: 128‑bit

• Memory Clock: 28 Gbps

🚀 Cooling & Structure

• Cooling System: WINDFORCE with Hawk fan, server‑grade thermal conductive gel, composite copper heat pipes, and reinforced structure.

🔌 Performance & Interface

• Bus: PCI‑E 5.0

• Max Digital Resolution: 7680×4320

• Multi‑View: Up to 4 displays

🔋 Power & Connections

• Recommended PSU: 550 W

• Power Connector: 1 × 8‑pin

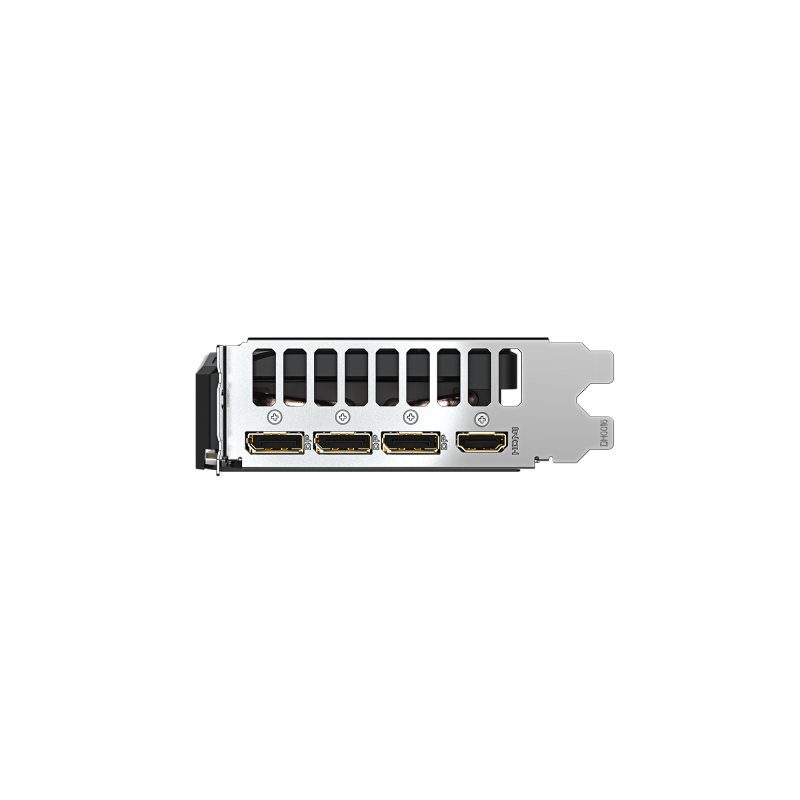

🖥️ Display Outputs

• 3 × DisplayPort 2.1b

• 1 × HDMI 2.1b

📏 Dimensions & Design

• Card Size: 199 × 116 × 40 mm

• PCB Form Factor: ATX

🔧 API Support & Features

• API: DirectX 12, OpenGL 4.6

• AI & RTX Features: DLSS 4, 5th‑gen Tensor Cores, 4th‑gen RT Cores, NVIDIA Reflex 2, NVIDIA ACE, NVIDIA Studio

📦 Included Accessories

• Quick Guide
